30-Degree Circular Light Source Machine Vision Light Source PCB Substrate Intelligent Inspection Dedicated Product Appearance defect Detection（White DBS-R9030）

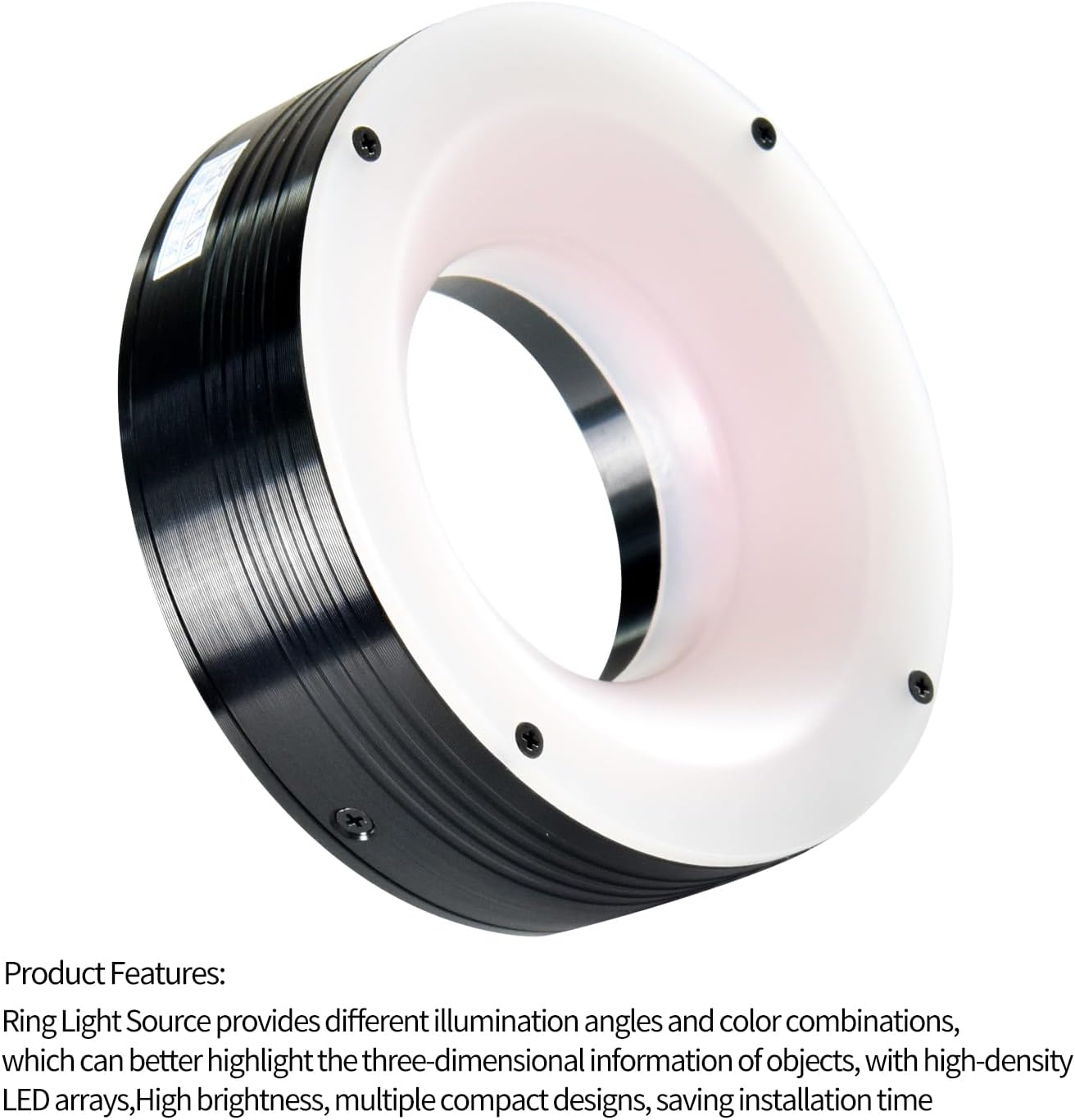

The ring-shaped light source offers different illumination angles and colors, which can better highlight the three-dimensional information of objects. It features a high-density LED array, high brightness, and multiple compact designs, saving installation space and solving the problem of diagonal shadows. It is equipped with a reflector plate for light guide, ensuring uniform light diffusion. It is applicable to the positioning of connector pins, QR code recognition, microscope illumination, PCB substrate inspection, electronic component inspection, appearance defect inspection, etc.

• The default voltage of the light source is 24V, the built-in wire length is 0.5 meters, and the interface is 3 pins and 2 pins. It needs to be used in conjunction with a light source controller to adjust the brightness. The selectable colors of the light source include white, red, blue and green White color temperature: 7000-8000K Red wavelength: 620-630nm Green wavelength: 520-530nm Blue wavelength: 465-475nm
