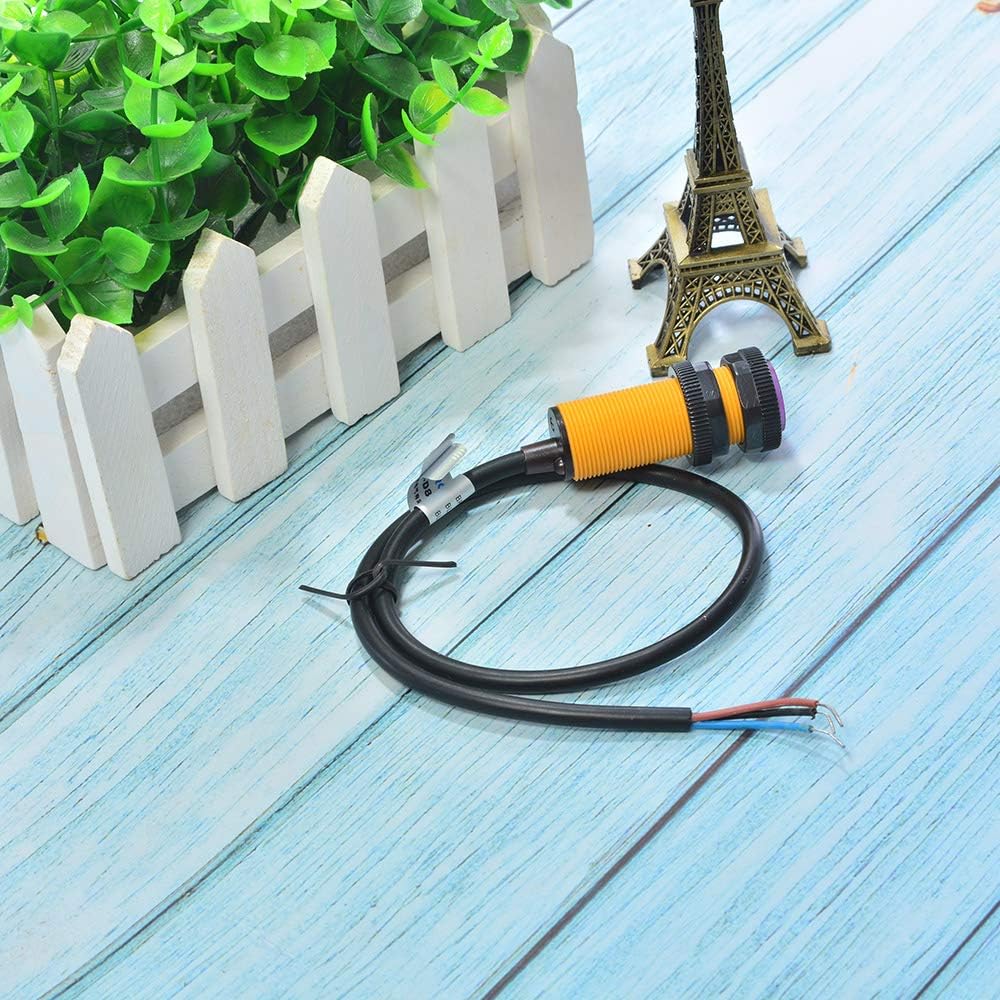

Comimark 2Pcs E18-D80NK Infrared Photoelectric Switch Sensor Obstacle Avoidance Sensor Module
Product details
| Management number | 250273821 | Release Date | 2026/09/17 | List Price | US$4.36 | Model Number | 250273821 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Comimark 2Pcs E18-D80NK Infrared Photoelectric Switch Sensor Obstacle Avoidance Sensor ModuleThis is a photoelectric sensor that combines emission and reception. The detection distance can be adjusted as required. The sensor has the advantages of long detection distance, small visible light interference, , easy assembly, and easy use. It can be widely used in many automation products such as obstacle avoidance and assembly line counting of robots.Electrical characteristics: U:5VDC I:100mA Sn:3-80CMsize: Diameter: 17MM Sensor length: 45MM Lead length: 45CMPhotoelectric sensor (photoelectric switch) NPN normally openModel: E18-D80NK.Technical parameters of photoelectric switch E18:1. Output current DC/SCR/Relay Control output: 100mA/5V power supply2. Consumption current DC<25mA3. response time <2ms4. pointing angle: ≤ 15 °, effective distance 3-80CM adjustable5. detection of objects: transparent or opaque body6. the working environment temperature: -25 °C ~ +55 °C7. standard detection objects: the following 10000LX of the incandescent lamp below 3000LX8. shell material: plasticPackage Included:2 x E18-D80NK Infrared Photoelectric Switch Sensor Obstacle Avoidance Sensor Module
- This is a photoelectric sensor that combines emission and reception. The detection distance can be adjusted as required.
| UPC | 657835706203 |
|---|---|
| ASIN | B07X4FLG5D |
| Model | E18-D80NK |
| Brand Name | Comimark |
| Style Name | Modern |
| Unit Count | 2 Count |
| Output Type | Digital |
| Part Number | LY480 |
| Manufacturer | Comimark |
| Material Type | lead |
| Response Time | 2 milliseconds |
| Current Rating | 100 milliamps |
| Measuring Range | 3 - 80 cm |
| Number of Items | 2 |
| Sensing Distance | 80 centimeters |
| Maximum Supply Voltage | 5 volts_of_direct_current |
| Upper Temperature Rating | 55 °C |
| Specific Uses For Product | obstacle avoidance, proximity detection, assembly line counting |
